Internal Turning Tool You Are Here : Internal Turning Tool
SCL*R/L

       型 号

 最小加工径                       刀片 螺丝 扳手 出水孔

       Specification

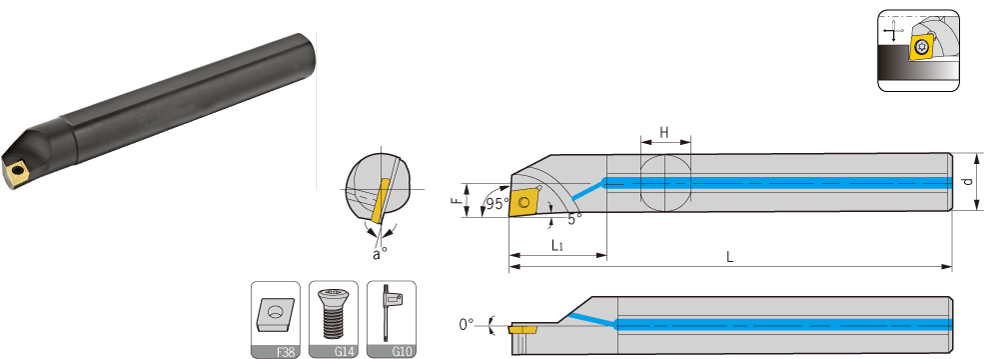

 Min dia d F L L1 H a Insert Screw Wrench Water hole

 S07K-SCLCR/L06-A16

9

 16 4.5 125 15

15

15°

CC..0602..

 M2.5*5 Q08

-

 S07K-SCLCR/L06

9

 8 4.5 125 12

7

15°

CC..0602..

 M2.5*5 Q08

-

 S08K-SCLCR/L06

10

 8 5 125 14

7

13°

CC..0602..

 M2.5*5 Q08

-

 S08K-SCLCR/L06-A16

12

 16 5 125 21

15

13°

CC..0602..

 M2.5*5 Q08

-

 S10K-SCLCR/L06-A16

13

 16 6 125 26

15

12°

CC..0602..

 M2.5*6 Q08

-

 S10K-SCLCR/L06

13

 10 6 125 17

9

12°

CC..0602..

 M2.5*6 Q08

-

 S12M-SCLCR/L06

16

 12 7 150 20

11

10°

CC..0602..

 M2.5*6 Q08

-

 S16N-SCLCR/L06

20

 16 9 160 27

15

8°

CC..0602..

 M2.5*7 Q08

-

 S12M-SCLCR/L09

16

 12 9 150 20

11

12°

CC..09T3..

 M3.5*8 Q15

-

 S12M-SCLCR/L09-A16

16

 16 9 150 31

15

12°

CC..09T3..

 M3.5*8 Q15

-

 S16N-SCLCR/L09

20

 16 9.5 160 27

15

10°

CC..09T3..

 M3.5*8 Q15

-

 S20Q-SCLCR/L09

25

 20 11.5 180 34

18

8°

CC..09T3..

 M3.5*9 Q15

-

 S25R-SCLCR/L09

31

 25 14 200 34

23

6°

CC..09T3..

 M3.5*9 Q15

-

 S32S-SCLCR/L09

39

 32 17.5 250 54

30

4°

CC..09T3..

 M3.5*9 Q15

-

 S40T-SCLCR/L09

50

 40 21 300 68

37

0°

CC..09T3..

 M3.5*9 Q15

-

 S20Q-SCLCR/L12

25

 20 12 180 34

18

10°

CC..1204..

 M5*10 Q20

-

 S25R-SCLCR/L12

32

 25 14.5 200 43

23

8°

CC..1204..

 M5*12 Q20

-

 S32S-SCLCR/L12

39

 32 18 250 54

30

6°

CC..1204..

 M5*12 Q20

-

 S40T-SCLCR/L12

50

 40 22 300 68

37

4°

CC..1204..

 M5*12 Q20

-

 H08K-SCLCR/L06

10

 8 5 125 16

7

13°

CC..0602..

 M2.5*5 Q08

-

 H10K-SCLCR/L06

13

 10 6 125 20

9

12°

CC..0602..

 M2.5*6 Q08

-

 H12M-SCLCR/L06

16

 12 7 150 24

11

10°

CC..0602..

 M2.5*6 Q08

-

 H12M-SCLCR/L09

16

 12 9 150 24

11

12°

CC..09T3..

 M3.5*8 Q15

-

 H16N-SCLCR/L09

20

 16 9.5 160 32

15

10°

CC..09T3..

 M3.5*8 Q15

-

 C08K-SCLCR/L06

10

 8 5 125 14

7

13°

CC..0602..

 M2.5*5 Q08

-

 C10M-SCLCR/L06

13

 10 6 150 17

9

12°

CC..0602..

 M2.5*6 Q08

-

 C12Q-SCLCR/L06

16

 12 7 180 20

11

10°

CC..0602..

 M2.5*6 Q08

-

 C12Q-SCLCR/L09

16

 12 9 180 20

11

12°

CC..09T3..

 M3.5*8 Q15

-

 C16R-SCLCR/L09

20

 16 9.5 200 27

15

10°

CC..09T3..

 M3.5*8 Q15

-

 C20S-SCLCR/L09

25

 20 11.5 250 34

18

8°

CC..09T3..

 M3.5*9 Q15

-

 C20S-SCLCR/L12

25

 20 12 250 34

18

10°

CC..1204..

 M5*10 Q20

-

型 号

 最小加工径                       刀片 螺丝 扳手 出水孔

Specification

 Min dia d F L L1 H a Insert Screw Wrench Water hole

S08K-SCLPR/L06

10

 8 5 125 14

7

10°

CC..0602..

 M2.5*5 Q08

-

S10K-SCLPR/L06

13

 10 6 125 17

9

8°

CC..0602..

 M2.5*5 Q08

-

S12M-SCLPR/L06

16

 12 7 150 20

11

6°

CC..0602..

 M2.5*6 Q08

-

S10K-SCLPR/L08

13

 10 6 125 17

9

8°

CP..0802..

 M3*6 Q08

-

S12M-SCLPR/L08

16

 12 7 150 20

11

6°

CP..0802..

 M3*6 Q08

-

S16N-SCLPR/L08

20

 16 9 160 27

15

4°

CP..0802..

 M3*7 Q08

-

S20Q-SCLPR/L08

25

 20 11 180 34

18

2°

CP..0802..

 M3*7 Q08

-

S12M-SCLPR/L09

16

 12 9 150 20

11

10°

CC..0903..

 M3.5*7 Q15

-

S16N-SCLPR/L09

20

 16 9.5 160 27

15

8°

CC..0903..

 M3.5*7 Q15

-

S20Q-SCLPR/L09

25

 20 11.5 180 34

18

6°

CC..0903..

 M3.5*9 Q15

-

S25R-SCLPR/L09

31

 25 14 200 43

23

4°

CC..0903..

 M3.5*9 Q15

-

S32S-SCLPR/L09

39

 32 17.5 250 54

30

4°

CC..0903..

 M3.5*9 Q15

-

A07K-SCLCR/L06

9

 8 4.5 125 12

7

15°

CC..0602..

 M2.5*5 Q08

√

A08K-SCLCR/L06

10

 8 5 125 14

7

13°

CC..0602..

 M2.5*5 Q08

√

A10K-SCLCR/L06

13

 10 6 125 17

9

12°

CC..0602..

 M2.5*6 Q08

√

A12M-SCLCR/L06

16

 12 7 150 20

11

10°

CC..0602..

 M2.5*6 Q08

√

A16N-SCLCR/L06

20

 16 9 160 27

15

8°

CC..0602..

 M2.5*6 Q08

√

A12M-SCLCR/L09

16

 12 9 150 20

11

12°

CC..09T3..

 M3.5*7 Q15

√

A16N-SCLCR/L09

20

 16 9.5 160 27

15

10°

CC..09T3..

 M3.5*7 Q15

√

A20Q-SCLCR/L09

25

 20 11.5 180 34

18

8°

CC..09T3..

 M3.5*9 Q15

√

A25R-SCLCR/L09

31

 25 14 200 43

23

6°

CC..09T3..

 M3.5*9 Q15

√

A20Q-SCLCR/L12

25

 20 12 180 34

18

10°

CP..1204..

 M5*10 Q20

√

A25R-SCLCR/L12

32

 25 14.5 200 43

23

8°

CP..1204..

 M5*10 Q20

√

A08K-SCLPR/L06

10

 8 5 125 14

7

10°

CP..0602..

 M2.5*5 Q08

√

A10K-SCLPR/L06

13

 10 6 125 17

9

8°

CP..0602..

 M2.5*5 Q08

√

A12M-SCLPR/L06

16

 12 7 150 20

11

6°

CP..0602..

 M2.5*5 Q08

√

A10K-SCLPR/L08

13

 10 6 125 17

9

8°

CP..0802..

 M3*6 Q08

√

A12M-SCLPR/L08

16

 12 7 150 20

11

6°

CP..0802..

 M3*6 Q08

√

A16N-SCLPR/L08

20

 16 9 160 27

15

4°

CP..0802..

 M3*7 Q08

√

A20Q-SCLPR/L08

 20 11 180 34

18

2°

CP..0802..

 M3*7 Q08

√

A12M-SCLPR/L09

16

 12 9 150 20

11

10°

CP..0903..

 M3.5*7 Q15

√

A16N-SCLPR/L09

20

 16 9.5 160 27

15

8°

CP..0903..

 M3.5*7 Q15

√

A20Q-SCLPR/L09

25

 20 11.5 180 34

18

6°

CP..0903..

 M3.5*9 Q15

√

适用 Suitable:德克刀片 DEREK Insert
