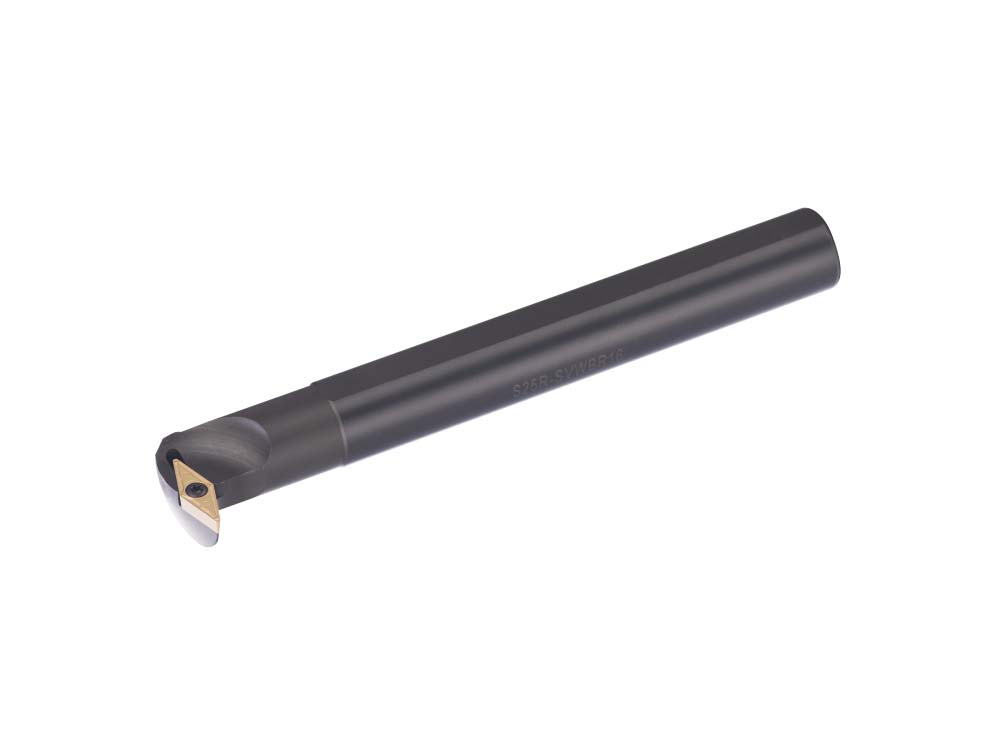

Internal Turning Tool You Are Here : Internal Turning Tool
SVX*R/L

型 号

 最小加工径                       刀片 螺丝 扳手 出水孔

Specification

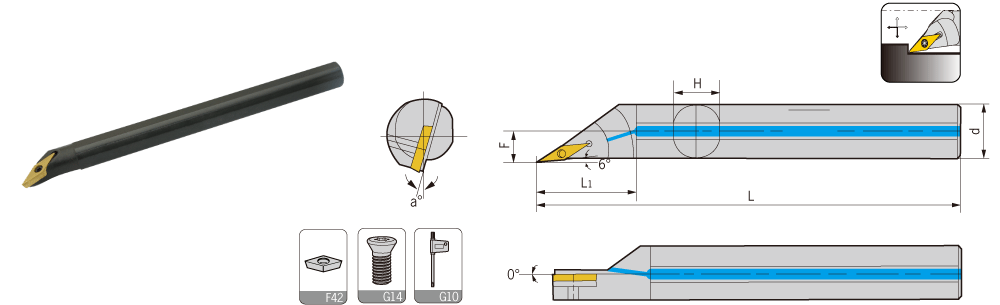

 Min dia d F L1 L H a Insert Screw Wrench Water hole

S10K-SVXBR/L11-G6

14

 10 7.5 17 125

9

10°

VB..1103..

 M2.5*6 Q08

-

S12M-SVXBR/L11-G6

16

 12 8.5 20 150

11

12°

VB..1103..

 M2.5*6 Q08

-

S16N-SVXBR/L11-G6

22

 16 11 27 160

15

10°

VB..1103..

 M2.5*7 Q08

-

S20Q-SVXBR/L11-G6

27

 20 13.5 34 180

18

8°

VB..1103..

 M2.5*6 Q08

-

H10K-SVXBR/L11-G6

14

 10 7.5 17 125

9

15°

VB..1103..

 M2.5*6 Q08

-

H12M-SVXBR/L11-G6

16

 12 8.5 20 150

11

12°

VB..1103..

 M2.5*7 Q08

-

H16N-SVXBR/L11-G6

22

 16 11 27 160

15

10°

VB..1103..

 M2.5*7 Q08

-

S10K-SVXCR/L11-G6

14

 10 7.5 17 125

9

12°

VC..1103..

 M2.5*6 Q08

-

S12M-SVXCR/L11-G6

16

 12 8.5 20 150

11

10°

VC..1103..

 M2.5*6 Q08

-

S16N-SVXCR/L11-G6

22

 16 11 27 160

15

8°

VC..1103..

 M2.5*7 Q08

-

S20Q-SVXCR/L11-G6

27

 20 13.5 34 180

18

6°

VC..1103..

 M2.5*7 Q08

-

H10K-SVXCR/L11-G6

14

 10 7.5 17 125

9

12°

VC..1103..

 M2.5*6 Q08

-

H12M-SVXCR/L11-G6

16

 12

8.5

 20 150

11

10°

VC..1103..

 M2.5*6 Q08

-

H16N-SVXCR/L11-G6

22

 16 11 27 160

15

8°

VC..1103..

 M2.5*7 Q08

-

S16N-SVXBR/L16-G6

22

 16 11.5 27 160

15

12°

VB..1604..

 M3.5*7 Q15

-

S20Q-SVXBR/L16-G6

27

 20 13.5 34 180

18

10°

VB..1604..

 M3.5*9 Q15

-

S25R-SVXBR/L16-G6

32

 25 16 43 200

23

8°

VB..1604..

 M3.5*9 Q15

-

S32S-SVXBR/L16-G6

40

 32 19.5 54 250

30

8°

VB..1604..

 M3.5*9 Q15

-

S40T-SVXBR/L16-G6

50

 40 23.5 68 300

37

8°

VB..1604..

 M3.5*9 Q15

-

S16N-SVXCR/L16-G6

22

 16 11.5 27 160

15

10°

VC..1604..

 M3.5*9 Q15

-

S20Q-SVXCR/L16-G6

27

 20 13.5 34 180

18

8°

VC..1604..

 M3.5*9 Q15

-

S25R-SVXCR/L16-G6

32

 25 16 43 200

23

6°

VC..1604..

 M3.5*9 Q15

-

S32S-SVXCR/L16-G6

40

 32 19.5 54 250

30

8°

VC..1604..

 M3.5*9 Q15

-

S40T-SVXCR/L16-G6

50

 40 23.5 68 300

37

6°

VC..1604..

 M3.5*9 Q15

-

H16N-SVXCR/L16-G6

22

 16 11.5 27 160

15

10°

VC..1604..

 M3.5*9 Q15

-

A10K-SVXBR/L11-G6

14

 10 7.5 17 125

9

15°

VB..1103..

 M2.5*6 Q08

√

A12M-SVXBR/L11-G6

16

 12 8.5 20 150

11

12°

VB..1103..

 M2.5*6 Q08

√

A16N-SVXBR/L11-G6

22

 16 11 27 160

15

10°

VB..1103..

 M2.5*7 Q08

√

A20Q-SVXBR/L11-G6

27

 20 13.5 34 180

18

8°

VB..1103..

 M2.5*7 Q08

√

A10K-SVXCR/L11-G6

14

 10 7.5 17 125

9

12°

VC..1103..

 M2.5*6 Q08

√

A12M-SVXCR/L11-G6

16

 12 8.5 20 150

11

10°

VC..1103..

 M2.5*6 Q08

√

A16N-SVXCR/L11-G6

22

 16 11 27 160

15

8°

VC..1103..

 M2.5*7 Q08

√

A20Q-SVXCR/L11-G6

27

 20 13.5 34 180

18

6°

VC..1103..

 M2.5*7 Q08

√

A16N-SVXBR/L16-G6

22

 16 11.5 27 160

15

12°

VB..1604..

 M3.5*9 Q15

√

A20Q-SVXBR/L16-G6

27

 20 13.5 34 180

18

10°

VB..1604..

 M3.5*9 Q15

√

A25R-SVXBR/L16-G6

32

 25 16 43 200

23

8°

VB..1604..

 M3.5*9 Q15

√

A16N-SVXCR/L16-G6

22

 16 11.5 27 160

15

10°

VC..1604..

 M3.5*7 Q15

√

A20Q-SVXCR/L16-G6

27

 20 13.5 34 180

18

8°

VC..1604..

 M3.5*9 Q15

√

A25R-SVXCR/L16-G6

32

 25 16 43 200

23

6°

VC..1604..

 M3.5*9 Q15

√

适用 Suitable:德克刀片 DEREK Insert
